Base Options
Woodline has created a wide range of base systems to anchor your shade exactly in the right spot. Browse our collections of free standing, mounted and speciality base systems and select from a range of material finishes to suit any environment and setting.
Concrete Bases
Double Paver Frame Kit (example with pavers)
The Paver Frame Base consists of a hot-dipped galvanized metal frame that houses standard 16 square inch x 1.77 inch paver slabs. To reduce shipping costs pavers can be purchased separately near installation location. Alternatively pavers can be included with base on special request. The frame houses either a single layer of 4 pavers (single layer ≥ 90kg/198lbs) or a double layer stack of 8 pavers (double layer ≥ 157kg/346lbs) with the aid of an extension kit).
| Weight | Use with Parasol | Parasol Model | Code |
|---|---|---|---|
| 198 lbs | Safari | SA40RE | PVB/4SA |
| 198 lbs | Safari | SA35RE | PVB/4SA |
| 346 lbs | Picollo | PI32RA | PVB/8PI |
| 346 lbs | Picollo | PI30SA | PVB/8PI |
| 346 lbs | Pendulum | PE40RAS | PVB/8PE |
| 346 lbs | Pendulum | PE35SAS | PVB/8PE |
| 346 lbs | Pendulum | PE34REAS | PVB/8PE |
| 346 lbs | Pavone | PA30SA | PVB/8PA |
| 346 lbs | Pavone | PA35RA | PVB/8PA |
| 346 lbs | Storm | ST35RSS | PVB/8STRM |
| 346 lbs | Storm | ST30SSS | PVB/8STRM66 |
The Paver Frame includes an extension kit. The extension kit is fitted to the frame when more weight is required by means of stacking four (4) additional pavers to form an eight (8) paver configuration. The PvB4 base type is a four (4) paver configuration while the PvB8 is a stacked eight (8) paver base configuration.
Note: the pavers are not included and only displayed in this image as a reference. Recommended paver size 16” x 16” W x 1.77” H
Concrete Slab Base Kit
Classic hexagonal shaped, reinforced concrete base fits any Woodline center pole parasol with various combinations of weights and tube sizes available for desired applications.
| Weight | Use with Parasol | Parasol Model | Code |
|---|---|---|---|
| 66 lbs | Mistral | MI27RA | CBS |
| 66 lbs | Mistral | MI30RA | CBS |
| 66 lbs | Mistral | MI20SA | CBS |
| 66 lbs | Mistral | MI25SA | CBS |
| 66 lbs | Safari | SA27RE | CBS |
| 122 lbs | Safari | SA35RE | CBM |
| 66 lbs | Safari | SA23SE | CBS |
| 122lbs | Safari | SA29SE | CBM |
| 122lbs | Safari | SA223REE | CBM |
Metal Bases
Round Metal Plate Base (S_HD-GAL) with Pole Tube (SS_POL)
The Round Metal Plate Base comes in various sizes for various wind exposures. The metal plate is made from steel which is powder coated (S_PC) as standard. It can also be bolted to the floor.
| Base Type | Weight | Size | Use with Parasol | Parasol Model | Code |
|---|---|---|---|---|---|
| RoundMetal | 35 lbs | 20 inch | Mistral | MI27RA | RMBS508/48 |
| RoundMetal | 35 lbs | 20 inch | Mistral | MI20SA | RMBS508/48 |
| RoundMetal | 35 lbs | 20 inch | Safari | SA27RE | RMBS508/48 |
| RoundMetal | 35 lbs | 20 inch | Safari | SA23SE | RMBS508/48 |
Square Metal Plate (S_PC) with Rollers & Pole Tube (S_PC)
The Square Metal Plate comes in various sizes for various wind exposures. Selected sizes are available with rollers to aid mobility. The metal plate is powder coated as standard.
| Base Type | Weight | Size | Use with Parasol | Parasol Model | Code |
|---|---|---|---|---|---|
| SquareMetal | 55 lbs | 23 inch | Mistral | MI30RA | SMBWW609/48 |
| SquareMetal | 55 lbs | 23 inch | Mistral | MI25SA | SMBWW609/48 |
| SquareMetal | 55 lbs | 23 inch | Safari | SA35RE | SMBWW609/57 |
| SquareMetal | 92 lbs | 27 inch | Safari | SA40RE | SMBWW700/70 |
| SquareMetal | 55 lbs | 23 inch | Safari | SA29SE | SMBWW609/57 |
| SquareMetal | 92 lbs | 27 inch | Safari | SA35SE | SMBWW700/70 |
| SquareMetal | 55 lbs | 23 inch | Safari | SA223REE | SMBWW609/57 |
Rectangular Metal Plate (S_PC)
Rectangular Metal Plate Base mounted with a 70mm metal stand that fits the Papillon shade. Can be bolted to the floor for extra stability.
| Base Type | Weight | Size | Use with Parasol | Parasol Model | Code |
|---|---|---|---|---|---|
| Rec.Metal | 88 lbs | 43.3 x 17.7inches | Papillon Rec. | 9.8 x 15.1ft | PAMB |
Double Stack SQ. Metal Plate (S_GAL)
The Double Stack Square Metal Plate Base is designed for the Woodline Cantilever ranges and is also able to mount any of the Woodline bolt-on Pole Stands to fit any of the Woodline Shades. Comes standard with adjustable nylon feet or optional heavy duty castor wheels.
| Base Type | Weight | Use with Parasol | Parasol Model | Code |
|---|---|---|---|---|
| Dbl.Stack Metal | 286 lbs | Picollo | PI32RA | DSPMPI |
| Dbl.Stack Metal | 286 lbs | Picollo | PI30SA | DSPMPI |
| Dbl.Stack Metal | 462 lbs | Pendulum | PE40RAS | DSPMPE |
| Dbl.Stack Metal | 462 lbs | Pendulum | PE35SAS | DSPMPE |
| Dbl.Stack Metal | 462 lbs | Pendulum | PE34REAS | DSPMPE |
| Dbl.Stack Metal | 286 lbs | Pavone | PA30SA | DSPMPA |
| Dbl.Stack Metal | 286 lbs | Pavone | PA35RA | DSPMPA |
| Dbl.Stack Metal | 286 lbs | Storm | ST35RS | DSPMSTRM |
| Dbl.Stack Metal | 286 lbs | Storm | ST30SSS | DSPMSTRM |
Oval Metal Plate (S_HD-GAL)
The Oval Metal Plate Base is designed for the Woodline Sky range and is also able to mount directly to the floor.
| Base Type | Weight | Use with Parasol | Parasol Model | Code |
|---|---|---|---|---|
| Oval Metal | 195.4 lbs | Sky | SK34RESS | DECKM |
Alternative Bases
Universal Below Deck Mounting Bracket (SS)
The Universal Below Deck Mounting Bracket is bolted between the framework of supporting beams under a wooden deck. The Universal Base Plate is then mounted from above the deck into the Universal Below Deck Mounting Bracket.
| Mount Type | Weight | Packed Size | use With Parasol | Code |
|---|---|---|---|---|
| Below Deck Mount | 15.4 lbs (8 kg) | 13.3 L x 13.3 W x 4.5 inch H | Any center pole, dual pole or cantilever | DECKM |
| Universal Base Plate (8 hole) | 15.4 lbs (8 kg) | 13.3 L x 13.3 W x 4.5 inch H | For use with deck plate | UNI/BPLATE |

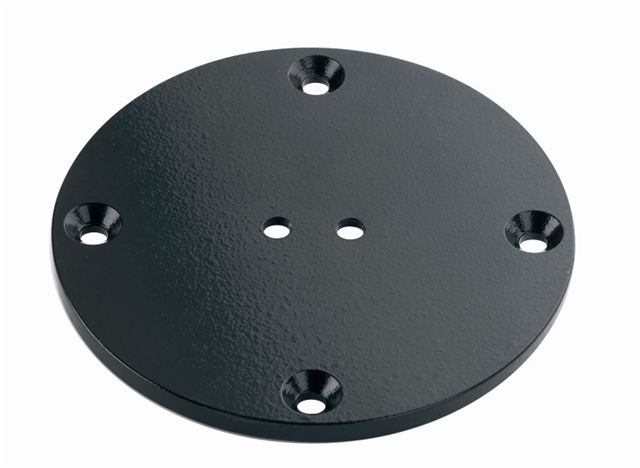

Spigot Base Plate – Round
The Spigot Base Plate fits any tube. It is then mounted to an appropriate free standing or mounted base such as the Paver Base Frame, Underground Mount and Below Deck Mount. It can also be bolted directly to the floor.
| Mount Type | Weight | Size | use With Parasol | Code |
|---|---|---|---|---|
| Spigot Base Plate (6 hole) | 5.33 lbs (2.4 kg)/td> | 7.9 ∅ x 0.39 inch | Safari / Mistral / Papillon | SPIGOT/BPLATE |
Underground Mount
The Underground Mount is designed to be concreted into the ground and is compatible with any of the Woodline shade solutions by means of a bolt-on pole stand for center and dual pole shades or spigot poles for the cantilever shade ranges.
| Mount Type | Weight | Size | use With Parasol | Code |
|---|---|---|---|---|
| Underground Mount | 13.2 lbs (6 kg) | 22 x 8.2 x 8.2 inch | Any center pole, dual pole or cantilever | UNGR |
In-Ground Bayonet Pole Stand
The In-Ground Bayonet Pole Stand consists of two stainless steel parts, the in-ground tube (to be concreted into the ground) and the bayonet tube (that slides into the in-ground tube and fastens when twisted).
| Mount Type | Weight | Size | use With Parasol | Code |
|---|---|---|---|---|
| Small Bayonet | 8.8 lbs (4kg) | 36.2 x 4.7 x 2.7inch | Mistral / Safari . 1.5 inch pole | IGBAY48 |
| Medium Bayonet | 12.1 lbs (5.5kg) | 40.9 x 5.1 x 3.7inch | Safari / 1.9 inch pole | IGBAY57 |
| Large Bayonet | 14.3 lbs (6.5kg) | 40.9 x 5.1 x 3.7inch | Safari / Papillon 2.4 inch pole | IGBAY70 |
Table Clamp
Polished stainless steel Table Clamp for bolting onto a wooden or concrete (park) table. Can be mounted from above or from below. Features shoe horn and hand wheel for securing the pole..
| Mount Type | Weight | Size | Use with parasol | Code |
|---|---|---|---|---|
| Table Clamp | 1.2 lbs (0.54 kg) | 1.9 x 1.9 x 5.8 inch | Mistral, Bravura, Safari | SSTABLE/48 |
| Table Clamp | 1.4 lbs (0.63 kg) | 2.2 x 2.2 x 5.8 inch | Safari, Bravura, Easilift | SSTABLE/57 |
Concrete Mount
Consists of a round metal base plate bolted directly to the floor with 4 concrete screw bolts. Concrete flooring needs to be at least 4 inches deep at 35Mpa. Compatible with all Woodline shade systems via a bolt-on Pole Stand or Spigot Poles.
| Mount Type | Weight | Size | Use with parasol | Code |
|---|---|---|---|---|
| Concrete Mount | 6.6 lbs (3 kg) | 7.9 x 7.9 x 0.4 inch | Picollo, Pavone, Safari, Mistral, Swift, Bravura, Storm, Easilift | C/MOUNT |
